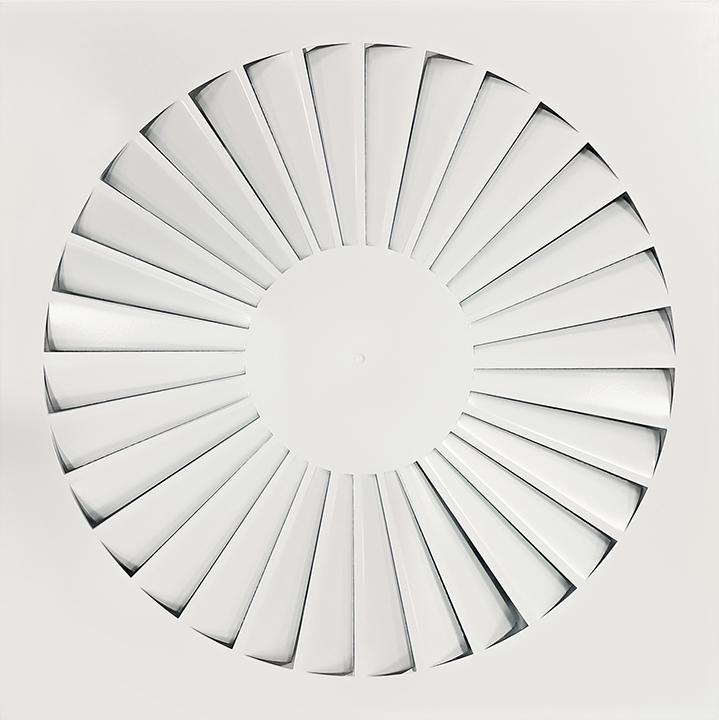

Stamped Swirl Diffusers

DSW   Powder Coated Metal Back, Round Neck

• Full face 24″ x 24″
• Neck sizes 6″-8″-10″-12″-14″ D.
• R4 or R6 insulation on back pan available.

DSWD   Swirl Face Supply Diffuser, Fixed face – 2″ Collar

• 2″ high, tapered collar with pull-out lips for easy flex connexion.
• Full face 24″ x 24″
• Pre-scored for neck sizes 6″ to 16″ D.

DSWI   Pre-scored R6 Insulation Molded Fiberglass Back

• Full face 24″ x 24″
• Pre-scored for neck sizes 6″ to 16″ D.

ADSW   Aluminum Swirl Face Supply Diffuser, Powder Coated Metal Back, Round Neck

• Full face 24″ x 24″
• Neck sizes 6″-8″-10″-12″-14″ D.
• R4 or R6 insulation on back pan available.

ADSWD   Aluminum Swirl Face Supply Diffuser, Fixed face – 2″ Collar

• 2″ high, tapered collar with pull-out lips for easy flex connexion.
• Full face 24″ x 24″
• Pre-scored for neck sizes 6″ to 16″ D.

ADSWI   Aluminum Pre-scored R6 Insulation Molded Fiberglass Back

• Full face 24″ x 24″
• Pre-scored for neck sizes 6″ to 16″ D.

N4   Radial Opposed Blade Damper

N5   Radial Sliding Blade Damper

PF   Plaster Frame for Diffusers

NBD   Baffle for DF diffusers

NBI   Baffle for ISO diffusers

NTSR   Square-to-Round Transition

NTRR   Round Neck Reducer

NTSS   Square-to-Square Transition

NTSS   Transition de carré à carré

NR6MFG   R6 Molded Fiberglass Backpan

FLEXRIGHT   Radius forming brace for flexible ducts

N4   Radial Opposed Blade Damper

• Galvanized steel construction.
• 6″, 8″, 10″, 12″ and 14″ D available.
• Vertical operator accepts standard screwdriver for slotted or hex head thru diffuser face.

N5   Radial Sliding Blade Damper

• Galvanized steel construction.
• 6″, 8″, 10″ and 12″ D available.
• Vertical operator accepts standard screwdriver for slotted or hex head thru diffuser face.

PF   Plaster Frame for Diffusers

New exclusive and patent pending design for Airvector®’s Plaster Frame for an easier and much faster install than any other similar product on the market.

• All aluminum
• 2 ways to install: standard or quick-tabs (Airvector® exclusive).

See how Airvector®’s Plaster Frame can save you a lot of time and money!

NBD   Baffle for DF diffusers

• Black, pie shape baffle.
• Easy to install (clip on).
• Available for 6″, 8″, 10″, 12″ and 14″ D neck sizes.

NTSR   Square-to-Round Transition

• Available for all standard square dimensions to all standard round neck dimensions.
• Powder Coated White for better aspect in the ceiling.
• 1″ Drawn Collar.
• Compact Design.

NTRR   Round Neck Reducer

Round-to-Round Transition

NTSS   Square-to-Square Transition

Available for most standard dimensions.

NR6MFG   R6 Molded Fiberglass Backpan

R6 insulated backpan used with Airvector® diffusers. Made of molded fiberglass with a foil layer on the exterior, our NR6MFG backpans are pre-scored for neck sizes from 6″ to 16″. Available in 24″x24″, either 3.25″ or 4″ deep.

FLEXRIGHT   Radius forming brace for flexible ducts

FEATURES

• Forms efficient 90 degree elbows.
• One-Size-Fits-All: adjustable hands conform to fit flexible duct Sizes 4″ – 16″. (102mm – 406mm)
• Eliminates flex duct kinks and restrictions.
• Improves airflow, saves energy
• Can be installed on new or existing flexible ducts.
• Equally great for residential and commercial applications.
• U.L. listed.
• Green product made of 100% recycled materials.
